S&S Cycle Gear Drive Camshaft Kit For Harley Davidson FLS 1690 06-17 106-4868

S&S Cycle Gear Drive Camshaft Kit For Harley Davidson FLS 1690 06-17 106-4868

106-4868

£886.99
£886.99
Sale Sold out
Vat included. Shipping calculated at checkout.
  • Designed for engines with 96 to 106 CID and 9:1 to 9:9 compression, this is a bolt-in cam set for stock or mildly modified touring bikes
  • Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes making higher cam lifts possible
  • More power across the rpm range, with improved low and midrange torque, strongest from 1,000-4,000 rpm
  • Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
  • Material must be removed from inner surface of the stock gear cover to install
  • A hydraulic press and other professional level tools are required for installation
  • Cam bearings and gaskets must be replaced when installing new cams
  • S&S recommends that adjustable pushrod/cover kit be used
  • Not recommended for compression ratios of 10:1 or greater

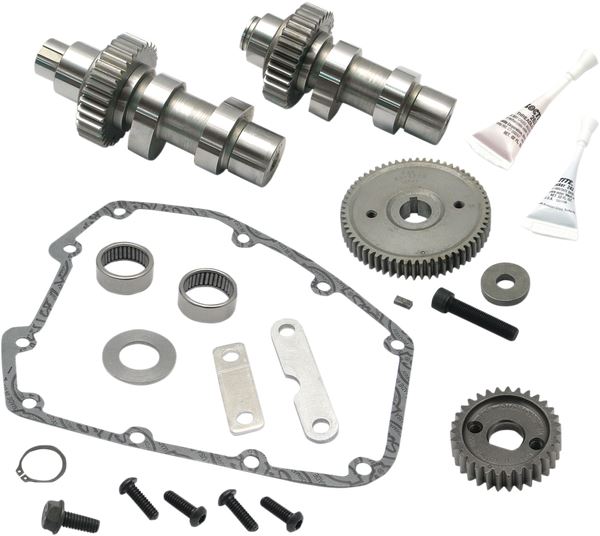

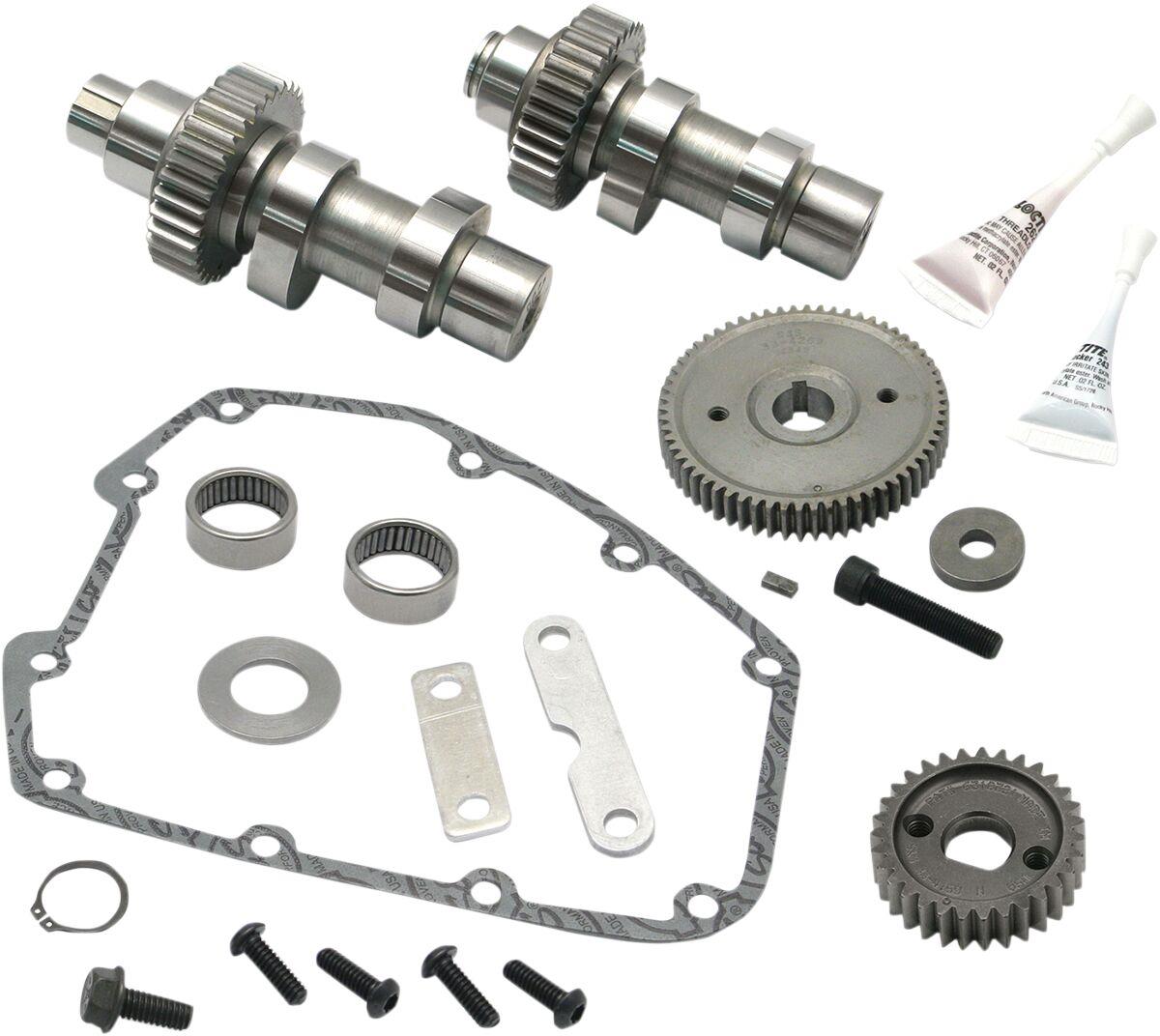

  • Kit includes inner gears, outer gears, inner and outer bearings, gaskets and instructions
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance, and valve to piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Can be used with stock pushrods, springs, and lifters.
    • Exhaust Duration 238°
    Intake Duration 216°
    Exhaust Lift at TDC 0,170"
    Product Type Camshaft Kit
    Intake Open 17°
    Exhaust Lift 0,550"
    Grind 551 Series
    Vendor Part Number 106-4868
    Exhaust Open 41°
    Intake Lift 0,550"
    Exhaust Lobe Centerline 102°
    Brand S&S CYCLE
    Type Gear
    Exhaust Close 17°
    Intake Lobe Centerline 91°
    Intake Close 19°
    Intake Lift at TDC 0,178"
    Application Exhaust, Intake

    … …
