S&S CYCLE

S&S Cycle Cam Chest Kit For M8 For Harley Davidson FLFBS 1923 2017-2025 310-1119

S&S Cycle Cam Chest Kit For M8 For Harley Davidson FLFBS 1923 2017-2025 310-1119

310-1119

£2,188.99
£2,188.99
Sale Sold out
Vat included. Shipping calculated at checkout.
  • All parts in each kit are matched to ensure superior quality, fit, finish and performance
  • Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
  • Passage plugs removable for servicing
  • Independent scavenge sections for the flywheel cavity and cam chest
  • Debris screens in both scavenge pickups
  • Increased oil flow capacity on both the feed and scavenge sides
  • Adjustable Pressure Relief Valve is adjustable with unit installed in engine
  • Magnet in cam chest to help to stop debris from entering oil pump
  • S&S Quickee Pushrods with finished pushrod tubes
  • S&S premium tappets
  • Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
  • Improved tappet stability in high-lift and high-rpm situations
  • Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
  • Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
  • Made in the USA

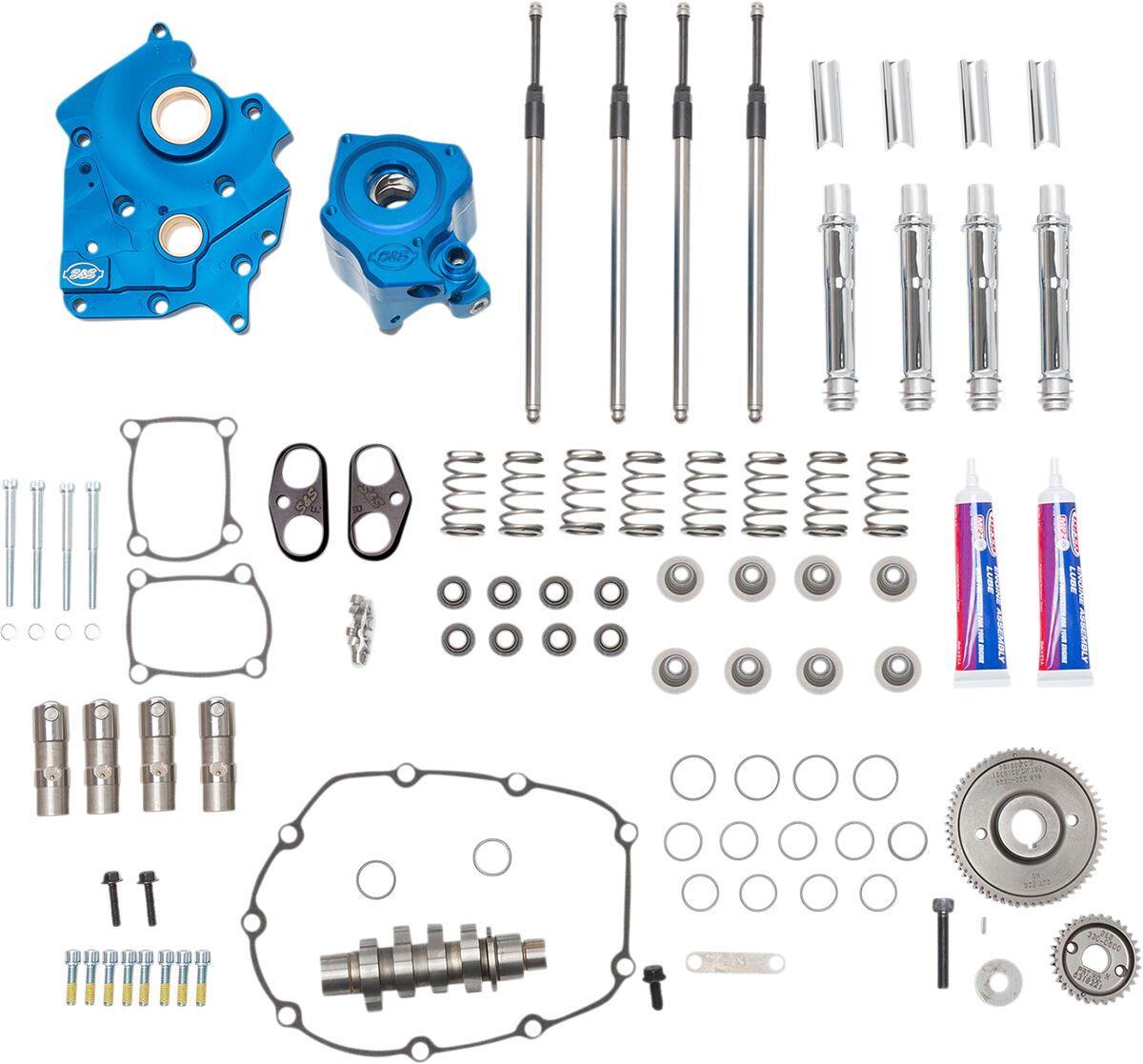

  • 540 kits are for touring bikes to add torque below 6000 RPM.Kit Includes:• Oil Pump Screw Kit• Cam Drive Gear Kit• 31 Tooth Pinion Gear• Camshaft Installation Kit• Quickee Pushrod Kit with Chrome Covers• Tappet Cuffs Lifter Guide• 3" S&S® Blue and White Logo Decal• Cam Plate Support Assembly• 540G Camshaft• Hydraulic Precision Tappet Set• Oil Cooled Oil Pump Assembly• Spring Kit• 1 oz Torco® Engine Assembly Lube.
    • Exhaust Duration 235,1° Front, 244,6° Rear
    Intake Duration 228,3° Front, 223,6° Rear
    Exhaust Lift at TDC 0,262" Front, 0,216" Rear
    Product Type Camchest Kit
    Intake Open 17,7° Front, 14,9° Rear
    Exhaust Lift 0,540"
    Grind 540G
    Vendor Part Number 310-1119
    Exhaust Open 21,2° Front, 37,7° Rear
    Intake Lift 0,540"
    Exhaust Lobe Centerline 83,6° Front, 95,4° Rear
    Brand S&S CYCLE
    Type Gear
    Exhaust Close 33,9° Front, 26,9° Rear
    Intake Lobe Centerline 96,4° Front, 96,9° Rear
    Intake Close 30,6° Front, 28,7° Rear
    Model 540 Big Bore Torque
    Features Chrome Pushrod Tubes
    Intake Lift at TDC 0,175" Front, 0,161" Rear
    Application Oil Cooled

    … …
