S&S CYCLE

S&S Cycle 583 Easy Start Camshaft Kit For Harley FLHX 1690 2003-2016 106-5811

S&S Cycle 583 Easy Start Camshaft Kit For Harley FLHX 1690 2003-2016 106-5811

106-5811

£1,000.99
£1,000.99
Sale Sold out
Vat included. Shipping calculated at checkout.
  • Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • Optimiized for use as a great overall camshaft for Softail and Dyna, but can be used in any Big Twin
  • Provides strong low-end torque and horsepower
  • Strongest from 1500 rpm to 5000 rpm in Softail and Dyna models
  • Bolt-in

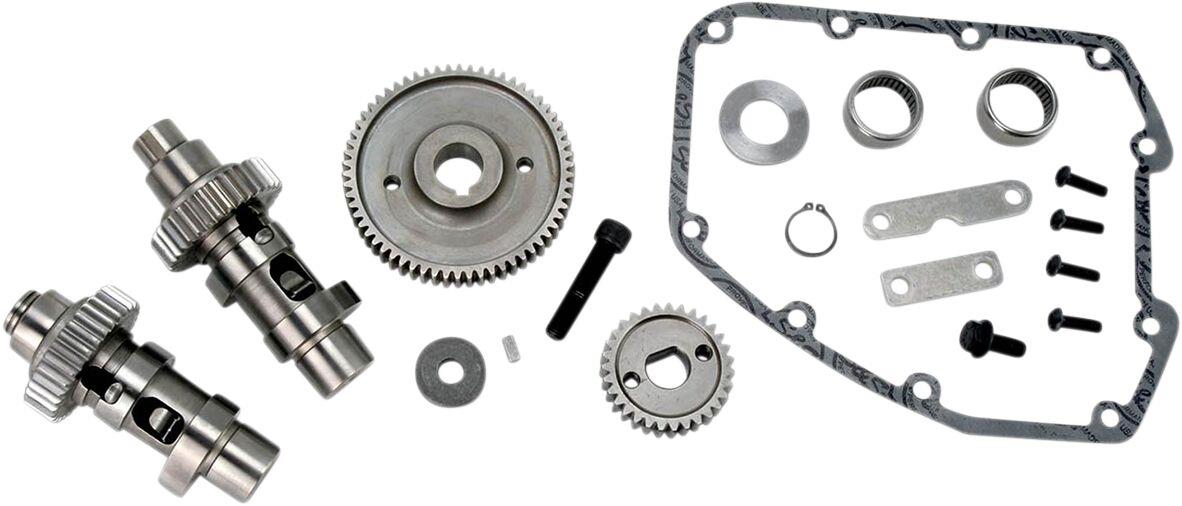

  • Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
  • Made in the USA
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Not for models with OEM compression releases.
  • Not recommended for compression ratios of 10.0:1 or greater.
  • Includes 4-gear set.Due to the inherent characterics of gear drives, there may be more valve train noise.
    • Exhaust Duration 262°
    Intake Duration 204°
    Exhaust Lift at TDC 0,206"
    Product Type Camshaft Kit
    Intake Open 5°
    Exhaust Lift 0,583"
    Grind 583 Series
    Vendor Part Number 106-5811
    Exhaust Open 58°
    Intake Lift 0,583"
    Exhaust Lobe Centerline 107°
    Brand S&S CYCLE
    Type Gear
    Exhaust Close 24°
    Intake Lobe Centerline 96,5°
    Intake Close 18°
    Model Easy Start
    Intake Lift at TDC 0,113"
    Application Exhaust, Intake

    … …
