S&S CYCLE

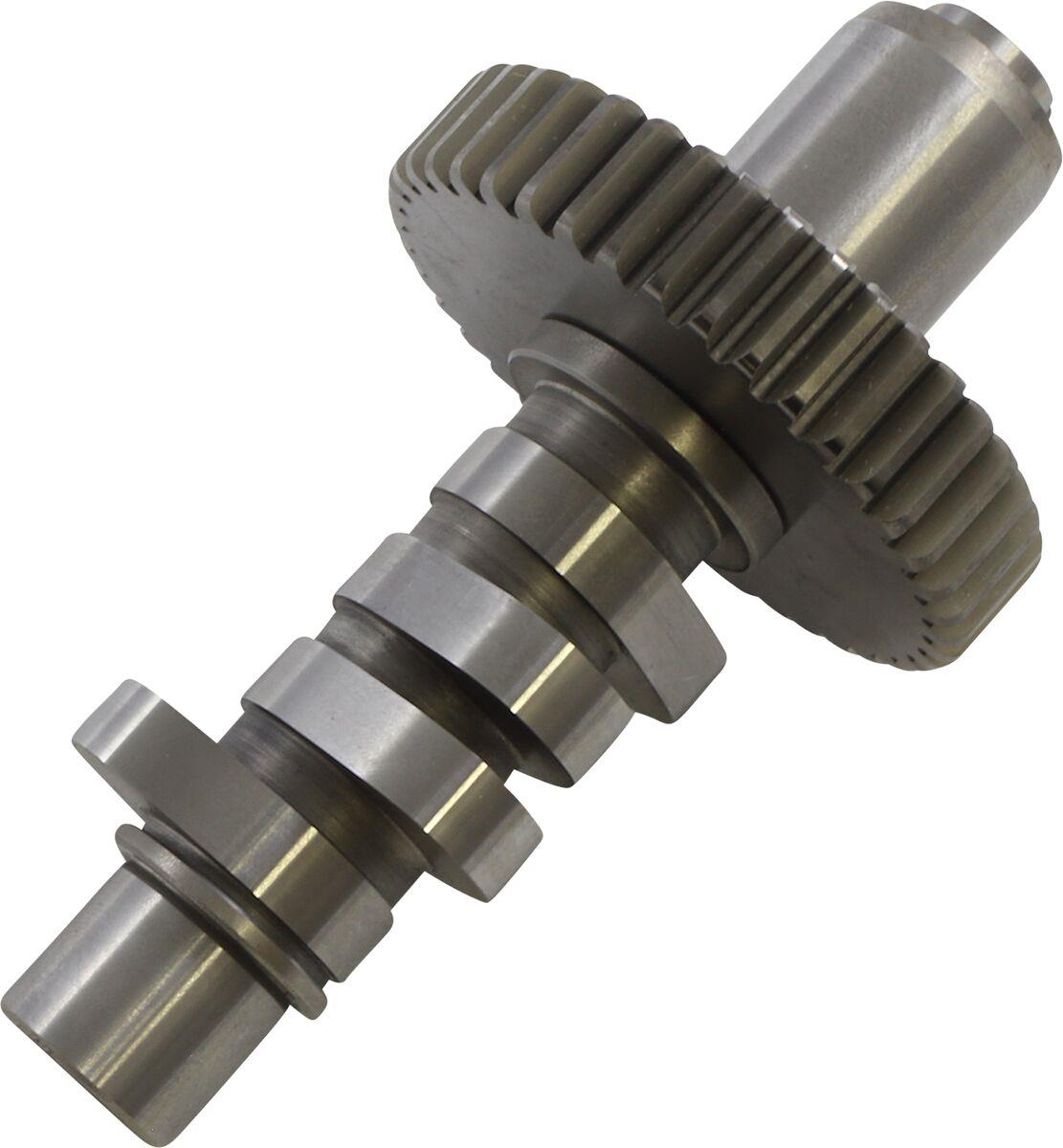

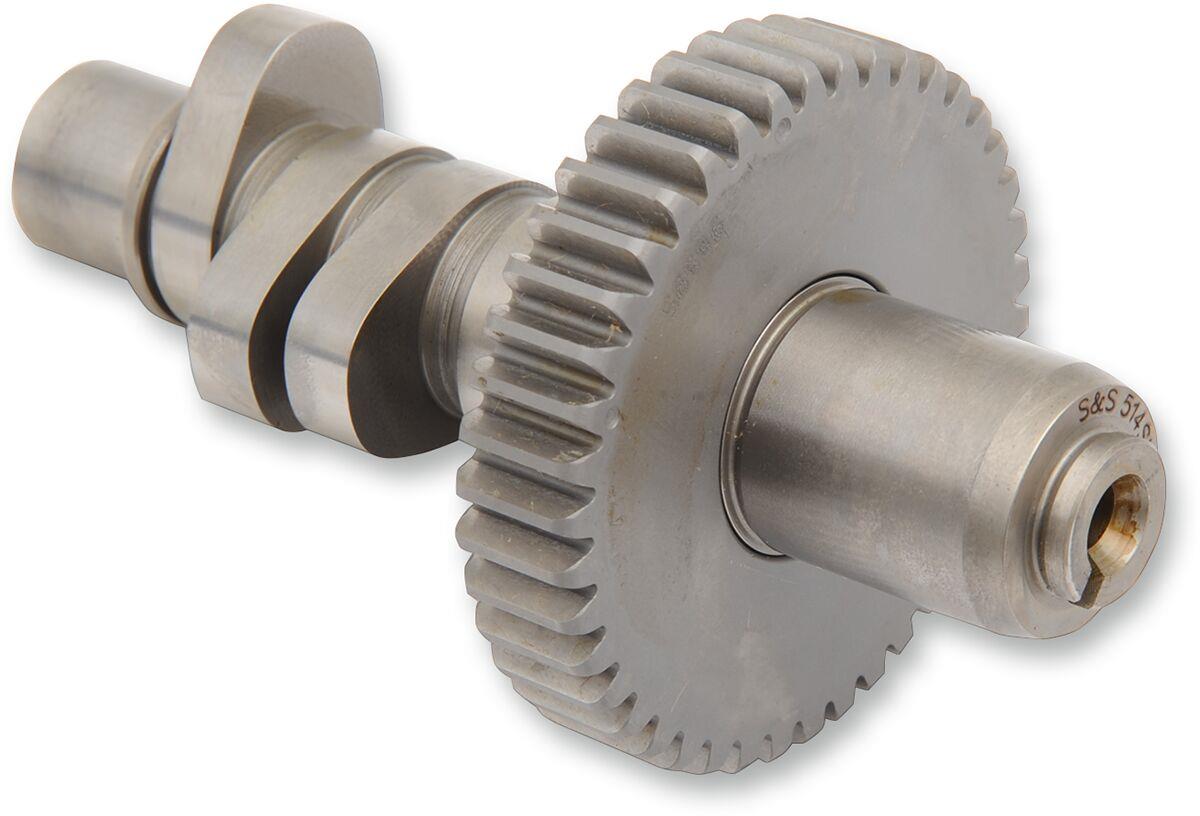

S&S Cycle 514 Camshaft For Harley Davidson FL 1200 1970-1977 33-5051

S&S Cycle 514 Camshaft For Harley Davidson FL 1200 1970-1977 33-5051

33-5051

£208.99
£208.99
Sale Sold out
Vat included. Shipping calculated at checkout.
  • S&S cams are tested on the dyno, street and racetrack before being offered to the public
  • With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
  • For 84" to 93" motors, not more than 9:1
  • Best response occurs in the mid range from 2500 to 5000 rpm
  • Recommend high-performance hydraulic or solid lifters
  • Made in the USA
  • Spring spacing is required.
  • Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
    • Exhaust Duration 246°
    Intake Duration 246°
    Exhaust Lift at TDC 0,177" Panhead, 0,169" Shovelhead
    Product Type Cam
    Intake Open 23°
    Exhaust Lift 0,540" Panhead, 0,514" Shovelhead
    Grind 514 Series
    Vendor Part Number 33-5051
    Exhaust Open 43°
    Intake Lift 0,540" Panhead, 0,514" Shovelhead
    Brand S&S CYCLE
    Exhaust Close 23°
    Intake Close 43°
    Intake Lift at TDC 0,177" Panhead, 0,169" Shovelhead
    Application Exhaust, Intake

    … …
    View full details
