HOT RODS

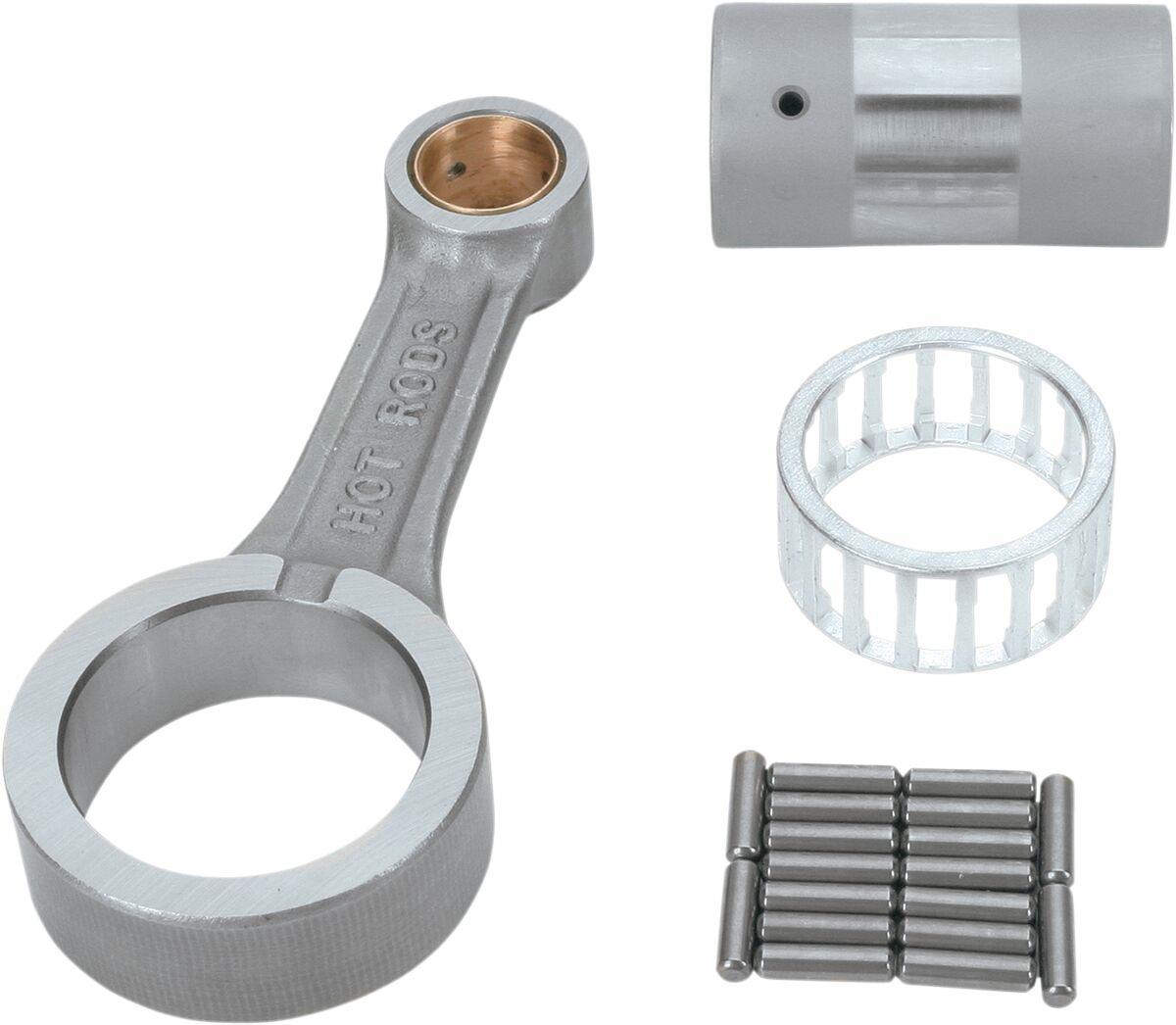

Hot Rods Connecting Rod Kit For Kawasaki KX 250 F Suzuki RM-Z 250 2004-2009 8622

Hot Rods Connecting Rod Kit For Kawasaki KX 250 F Suzuki RM-Z 250 2004-2009 8622

8622

£128.99
£128.99
Sale Sold out
Vat included. Shipping calculated at checkout.
  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
  • Features the latest in caged needle roller bearing designs for high rpm longevity
  • Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
  • Double honing produces an ultra-round bearing surface for reliability at high rpm
  • Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
  • Made in the USA
  • Compatible with Hot Rods and OE crankshafts.
  • Connecting Rod Big End I.D. 38.000 mmConnecting Rod Big End Width: 17.980 mmConnecting Rod Center-to-Center: 92.500 mmConnecting Rod Small End I.D. 16.000 mmConnecting Rod Small End Width: 15.100mmPin Length: 54.900 mmKit Includes:• Connecting Rod• Crank Pin• Crank Pin Bearing
    • Brand HOT RODS
    Engine Type 4-Cycle
    Product Type Connecting Rod Kit
    Vendor Part Number 8622
    Material 8620 Steel
    Displacement 250 cc

    … …
    View full details
