ANDREWS

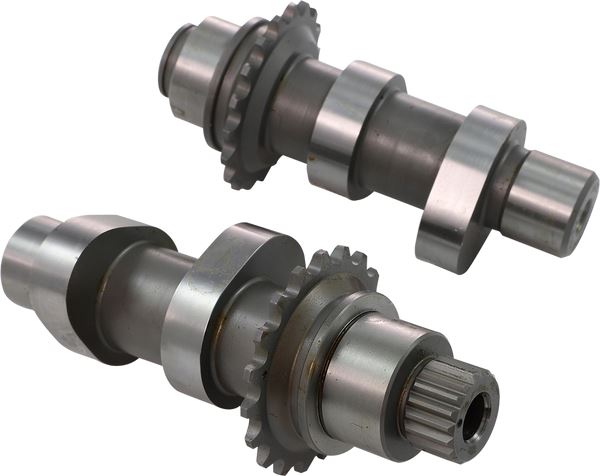

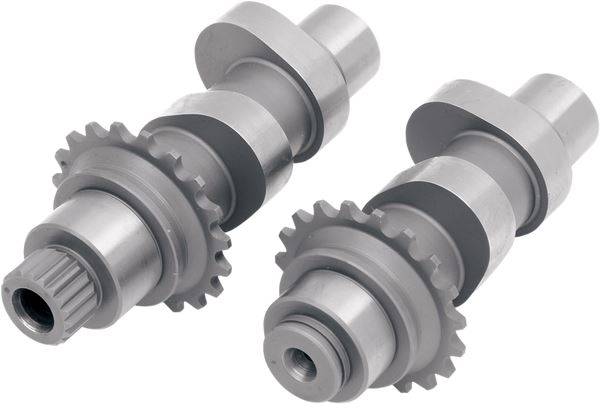

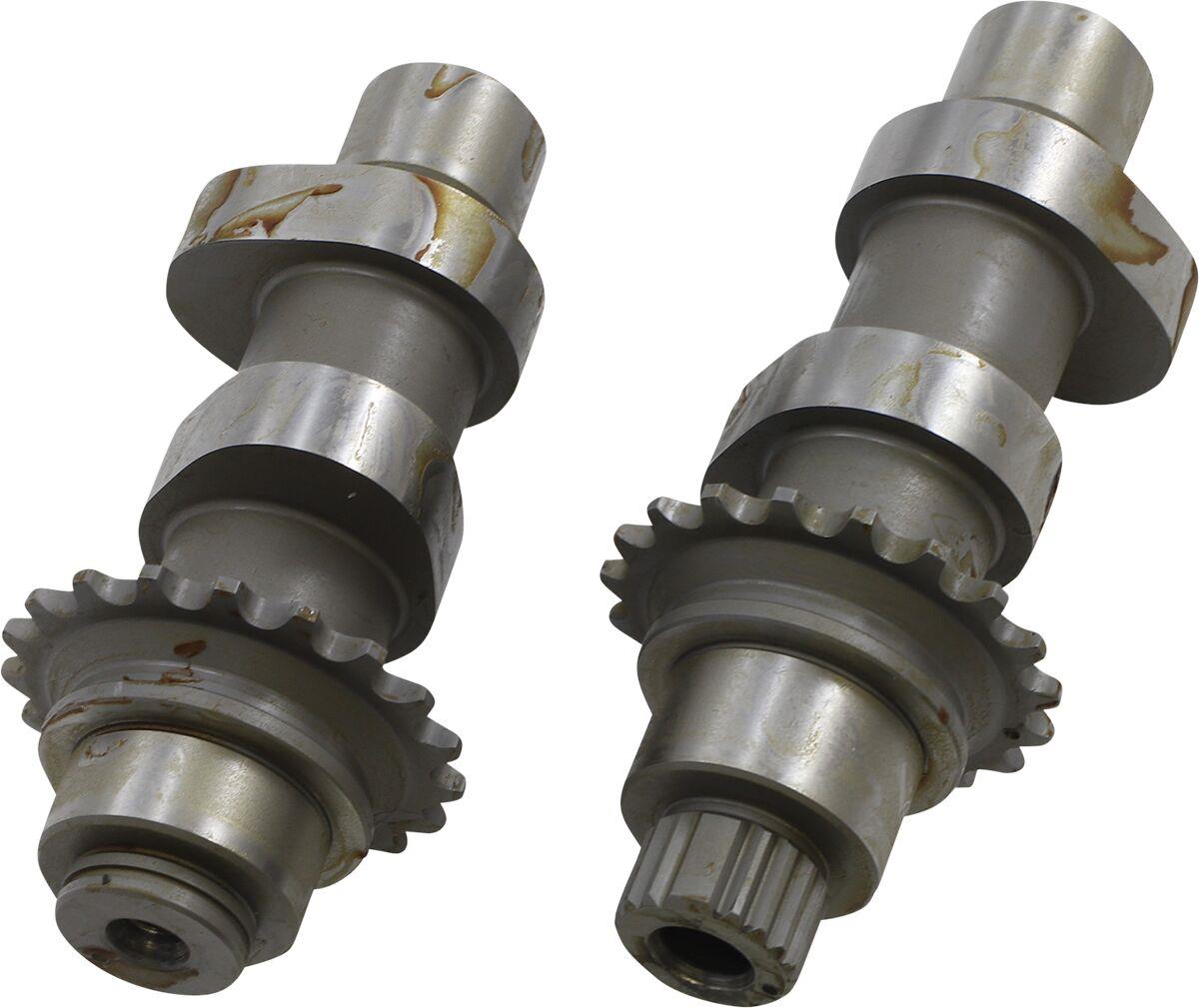

Andrews Conversion Chain Driven Cam For Harley FLHR 1450 1999-2006 Pair 216821

Andrews Conversion Chain Driven Cam For Harley FLHR 1450 1999-2006 Pair 216821

216821

£395.99
£395.99
Sale Sold out
Vat included. Shipping calculated at checkout.
  • Allows upgrade of the '99-'06 Twin Cam (except '06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
  • Cam grinds listed are designed to be used with stock lifters; they require the installation of a '07-'17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
  • A list of required components is supplied with each set of cams
  • Performance should be similar to earlier bikes with the same cam grinds
  • Made in the USA
  • '99-'06 Twin Cam motors (except '06 Dyna Glide) cannot use the '07-'17 cams, as the bearing journal on the earlier motors is .875" in diameter and the '07-'17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate.
  • '99-'01 model motors require Andrews rear cam sprocket . '02-'06 models must use the stock rear cam sprocket, OEM #25728-06.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Bolt-in cams with more torque at low and middle range 1700 - 4800 rpm.Similar to EV23 for heavy bikes.Ideal for heavy bikes with stock compression ratios and stock pistons.Can be used with stock valve springs and tappets.
    • Exhaust Duration 228°
    Intake Duration 255°
    Exhaust Lift at TDC 0,121"
    Product Type Cam Kit
    Intake Open 10°
    Exhaust Lift 0,498"
    Grind 21 Series
    Vendor Part Number 216821
    Exhaust Open 40°
    Intake Lift 0,498"
    Exhaust Lobe Centerline 106°
    Brand ANDREWS
    Type Chain Conversion
    Exhaust Close 8°
    Intake Lobe Centerline 100°
    Intake Close 30°
    Model N Series
    Intake Lift at TDC 0,134"
    Application Exhaust, Intake

    … …
